Acoustic Absorption 101

• Absorption converts sound to heat. Air vibrating through a porous material loses energy to friction. The material warms by a tiny amount, the room gets quieter.
• Three absorber types: porous (panels, batts), panel/membrane (low-frequency diaphragmatic), and Helmholtz resonators (tuned cavities). Each works on different frequencies.
• Thickness rules low frequency. A 2″ porous panel handles ~250 Hz and up. 4″ gets you 125 Hz. Sub-bass needs 6″+ or a tuned resonator.
• NRC averages 4 bands. NRC 0.85 means the material absorbs ~85% of incident energy averaged across 250–2000 Hz. Higher is better for speech-range absorption.

Acoustic absorption is the conversion of sound energy into low-grade heat. A sound wave is air moving back and forth. When that air pushes through fibers, foam cells, or thin pockets, it loses kinetic energy to friction. The lost energy becomes heat, the wave that bounces back is weaker, and the room sounds calmer.

The math behind absorption was established by Wallace Sabine in 1898 at Harvard. He worked out that the reverberation time of a room is proportional to its volume divided by its total absorption, where absorption is measured in sabins (the absorption of one square foot of perfectly absorbing surface). Every modern room acoustics calculation traces back to that formula.

Absorption is one of the four levers of acoustic design alongside mass, decoupling, and damping. Mass blocks sound from crossing a wall. Absorption controls what happens to sound inside a room. Mixing the two up is the most common spec mistake in commercial acoustic work.

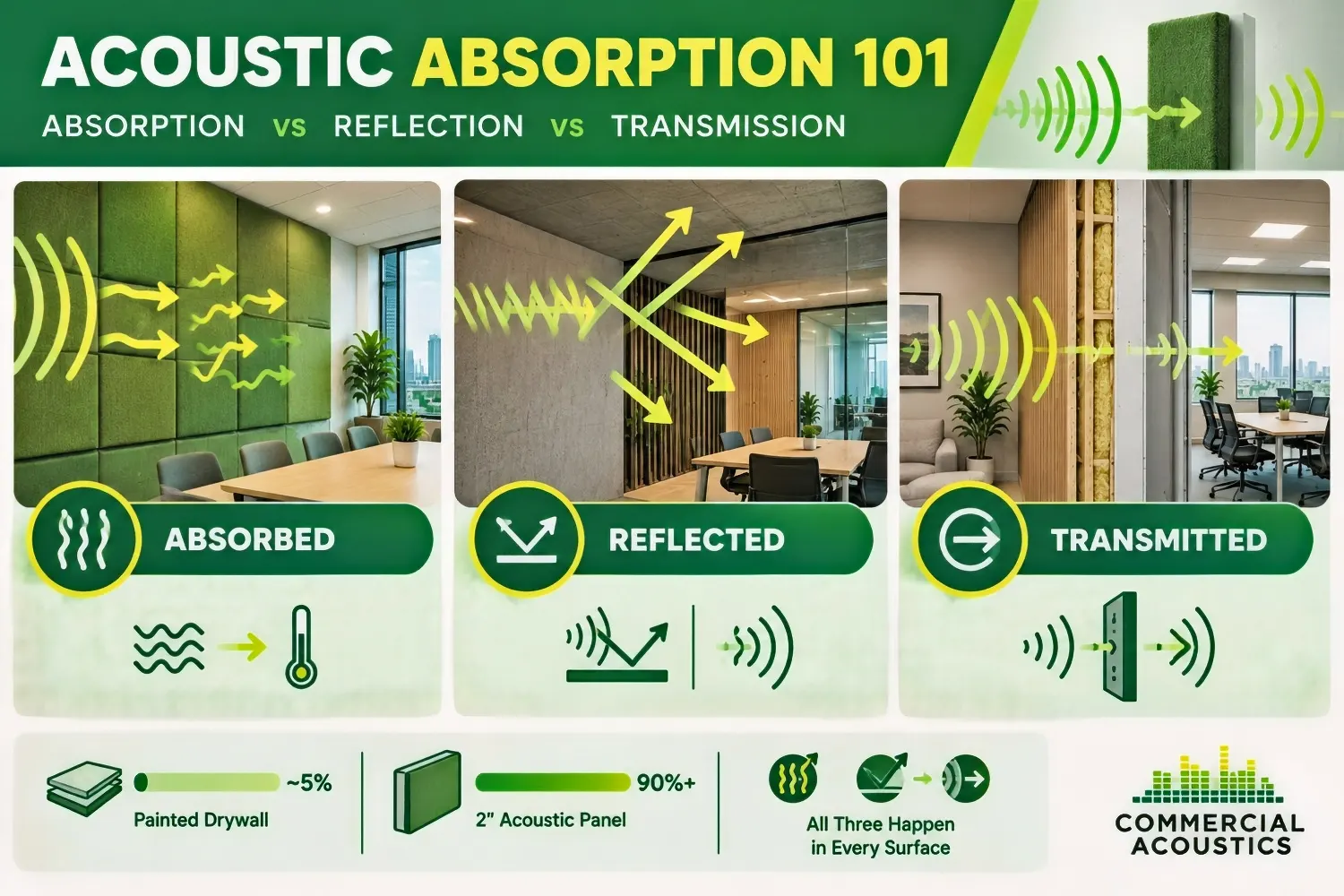

• Absorbed: Sound energy converted to heat inside the material. Reduces echo and reverberation.
• Reflected: Sound bounces off the surface. Builds up flutter echo, reverberation, and loss of speech clarity.
• Transmitted: Sound passes through the surface to the other side. Defeats privacy between rooms.

Every surface in a room does all three to some degree. Painted drywall reflects about 95% of incident speech-range energy and absorbs roughly 5%. A 2″ fabric-wrapped acoustic panel absorbs 90%+ and reflects almost nothing. The trade-off between these three behaviors is what acoustic design actually controls.

Absorption is the room-acoustics lever. To stop sound from getting through a wall, you need transmission control, which is mass and decoupling. To stop sound from bouncing inside the room, you need absorption. A panel with NRC 0.90 does nothing for transmission loss across a wall, and a high-STC wall does nothing for the echo inside a room.

Every absorber on the market falls into one of three categories. Each one works on a different physical principle and handles a different part of the frequency spectrum. Good acoustic design uses the right type for the frequency range that needs treatment.

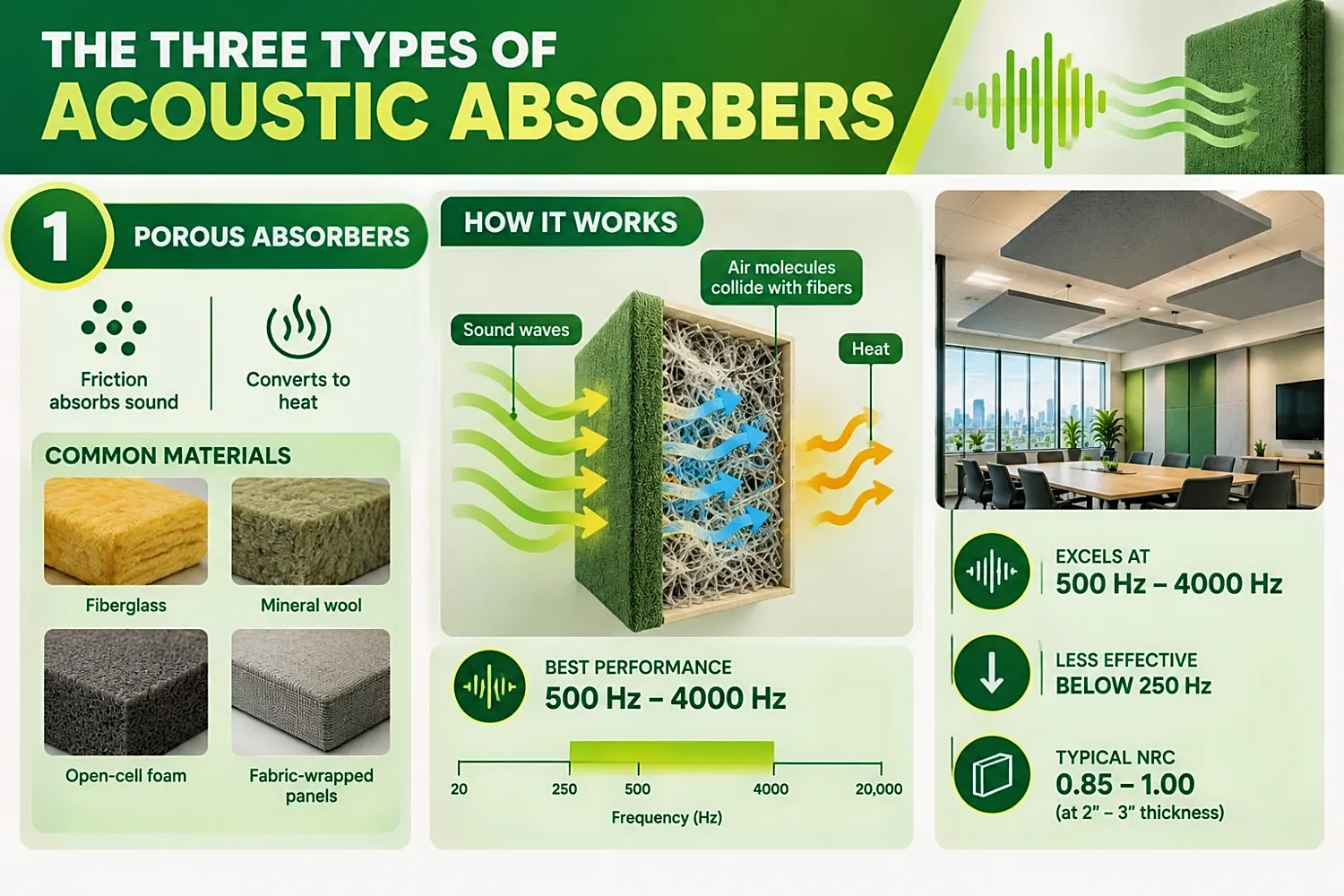

Fiberglass, mineral wool, open-cell foam, fabric-wrapped panels. These materials absorb by friction. Sound waves push air molecules through the porous matrix, the molecules collide with fibers, and the kinetic energy dissipates as heat.

Porous absorbers excel from about 500 Hz up through 4000 Hz. They struggle below 250 Hz unless the material is very thick or sits a meaningful distance away from a hard backing wall. This is why a thin acoustic panel can sound great for speech but do nothing for bass-heavy music.

Most commercial room treatment uses porous absorbers in the form of fabric-wrapped acoustic panels or ceiling clouds. NRC 0.85–1.00 is achievable at 2″–3″ panel thickness with the right core material.

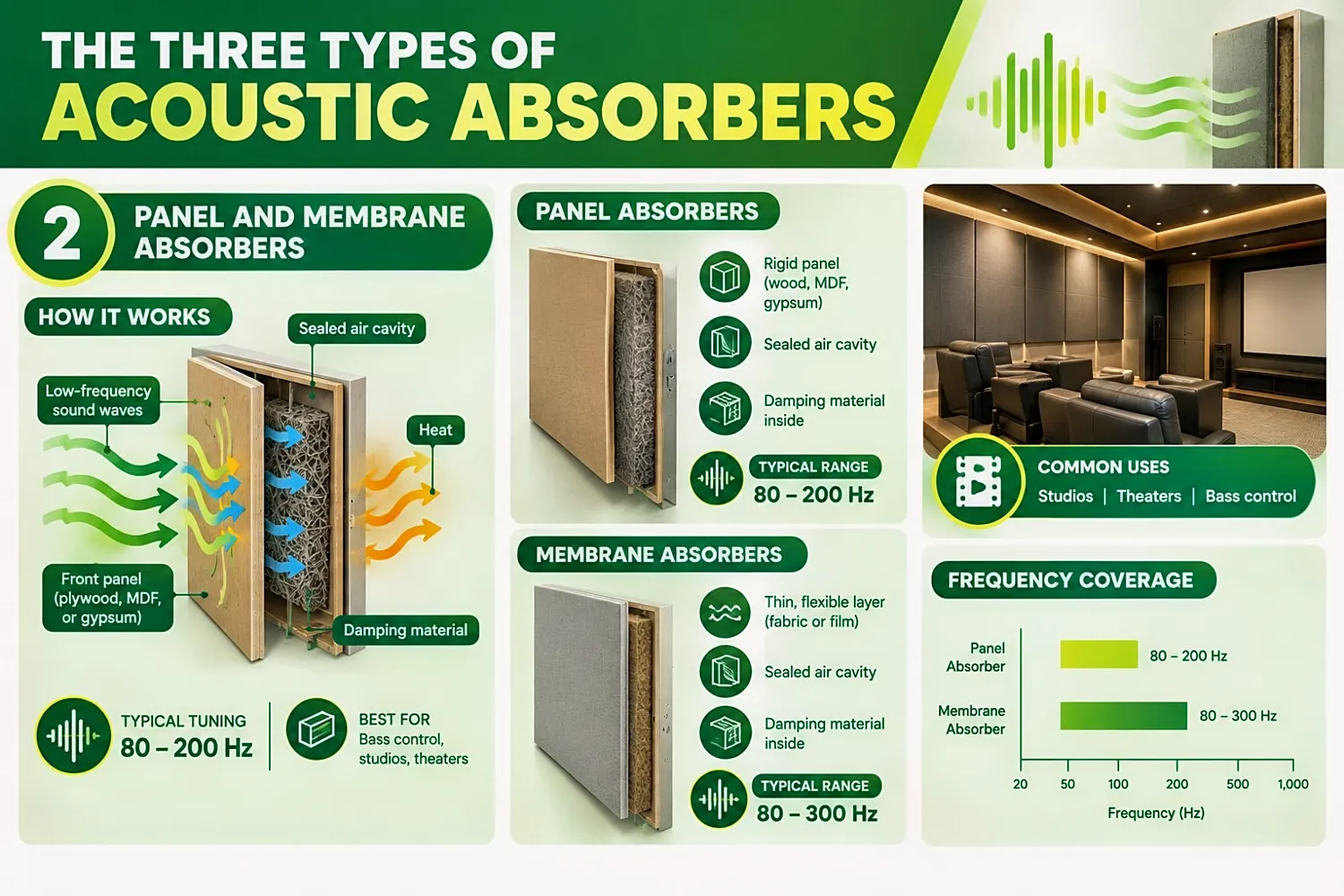

A panel absorber is a thin, flexible diaphragm (plywood, MDF, gypsum) mounted over a sealed air cavity. Low-frequency sound waves bend the panel back and forth like a drum head. The panel motion compresses and releases the trapped air, and friction with damping material inside the cavity converts the energy to heat.

Panel absorbers are tuned to a specific frequency range based on panel mass and cavity depth. A typical design hits 80–200 Hz, which is exactly where porous absorbers fail. Used in mastering rooms, theaters, and any space where bass control matters more than aesthetics.

Membrane absorbers are a variant using a thinner, lighter front layer (often a stretched fabric or thin film). They cover a slightly higher and wider frequency band than rigid panel absorbers and integrate more cleanly into architectural finishes.

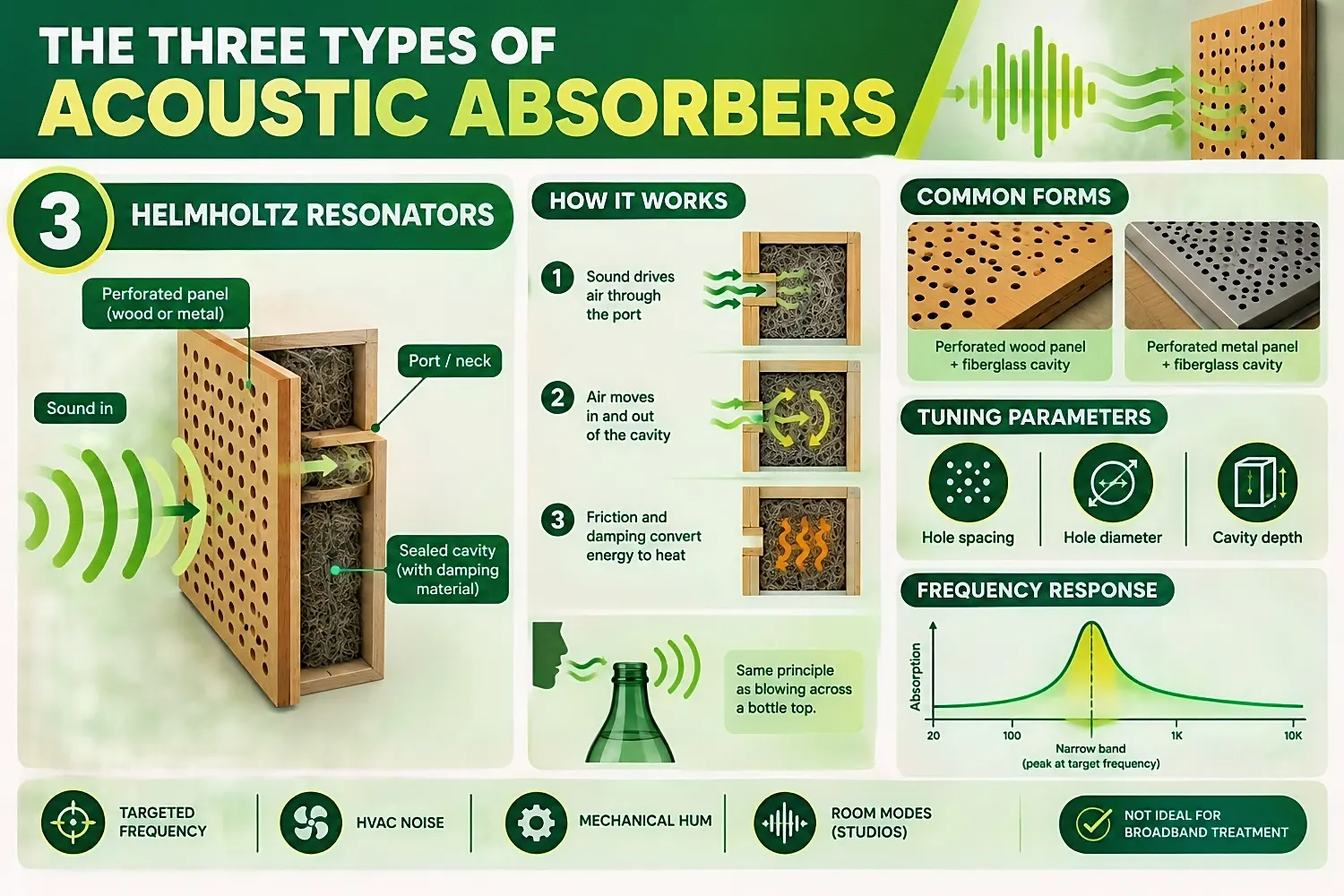

A Helmholtz resonator is a sealed cavity with a narrow opening (called a port or neck). At its resonant frequency, sound waves drive air in and out of the port. Friction at the neck and damping inside the cavity dissipate the energy. Think of blowing across a bottle top, but engineered.

Helmholtz designs offer the narrowest absorption band and the deepest absorption at their target frequency. Perforated wood and metal panels over fiberglass-filled cavities are the most common commercial form. The hole spacing, hole diameter, and cavity depth tune the resonant frequency.

Useful when a specific frequency needs to be killed: a mechanical hum, a room mode in a recording studio, an HVAC tonal noise. Less useful for broadband room treatment, where porous absorbers do more work per dollar.

• Absorption coefficient (α): Fraction of incident energy absorbed at a specific frequency. Ranges 0.00 (perfect reflection) to 1.00 (perfect absorption).
• NRC (Noise Reduction Coefficient): Average of α at 250, 500, 1000, and 2000 Hz, rounded to the nearest 0.05.
• SAA (Sound Absorption Average): Newer ASTM C423 metric. Average of twelve 1/3-octave bands from 200 to 2500 Hz. More precise than NRC.
• Sabin: Unit of absorption. 1 sabin = the absorption of 1 sq ft of perfectly absorbing surface. Material area × α = sabins.

NRC is still the dominant single-number rating in commercial specs. SAA is more accurate (12 bands instead of 4) but adoption has been slow. For most projects, NRC values from manufacturer cut sheets are the working metric.

The single number hides important detail. A panel rated NRC 0.85 might absorb 0.10 at 125 Hz and 1.00 at 2000 Hz. If the room problem is low-frequency rumble, the headline NRC is misleading. Always check the octave-band data, especially for music, theater, and worship spaces. The sound absorption coefficient chart shows octave-band values across common materials.

The quarter-wavelength rule explains why. A porous absorber works on particle velocity, which peaks a quarter-wavelength away from a reflecting surface. At 100 Hz the wavelength is 11 ft, so the velocity peak sits about 33 inches off the wall. A thin panel against the wall does nothing at that frequency because the air is barely moving where the panel sits.

Two ways to fix this: make the panel thicker, or mount it with an air gap behind it. A 2″ panel mounted 2″ off the wall behaves acoustically like a 4″ panel. That trick alone shifts the usable absorption range down a full octave at almost no cost.

• Sabine formula (imperial): RT60 = 0.049 × V / A. V = room volume in cubic feet, A = total absorption in sabins.
• Sabine formula (metric): RT60 = 0.161 × V / A.
• RT60: Time in seconds for sound to decay 60 dB after the source stops. The dominant metric for room acoustics.

Lower RT60 is not always better. A studio at 0.3 s sounds dead and unnatural. A concert hall at 0.5 s sounds clinical and lifeless. The right number depends on what happens in the room. For a worked example with real numbers, the how much sound absorption do you need walkthrough sizes treatment against a target RT60.

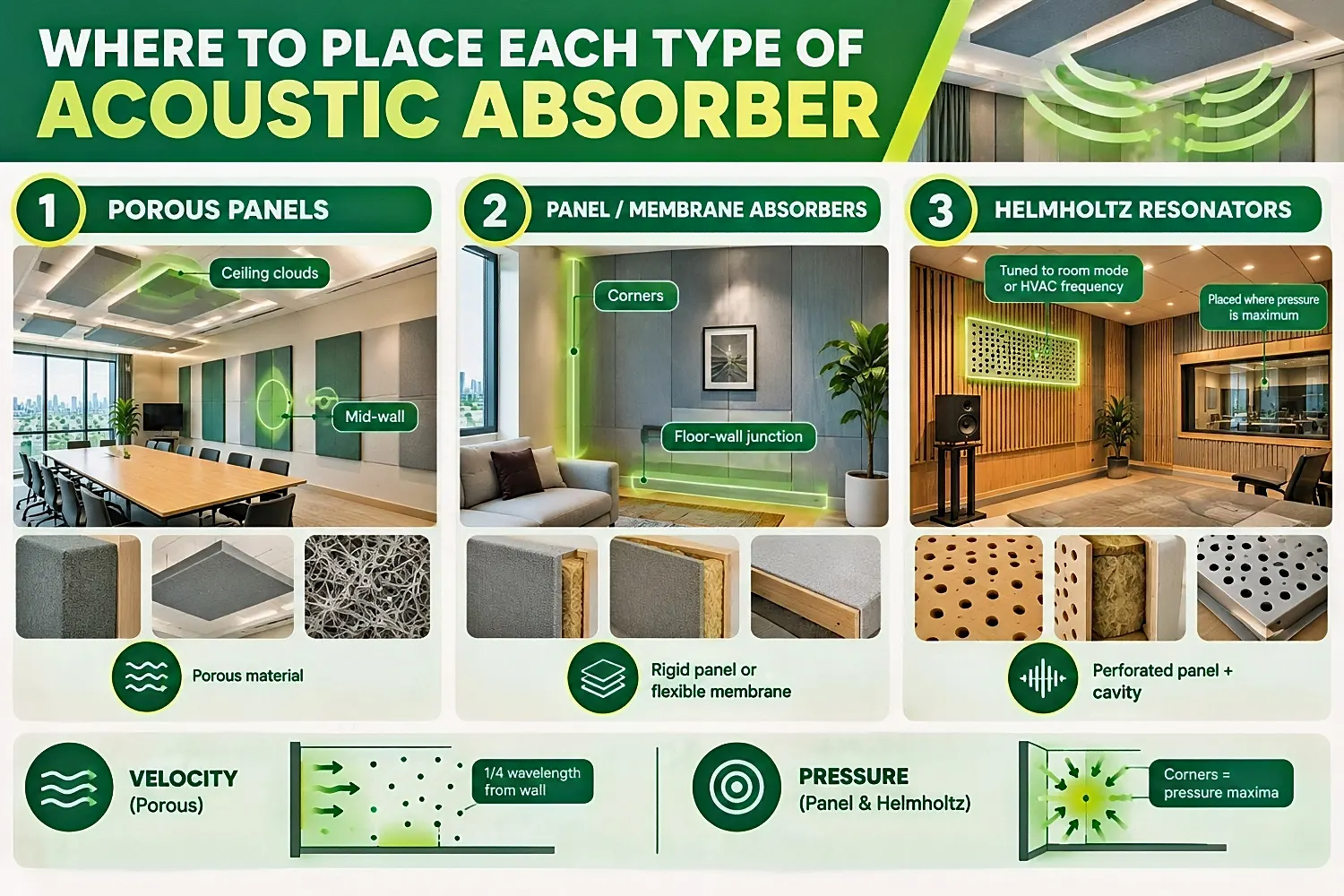

• Porous panels: Mid-wall locations and ceiling clouds. Target first-reflection points opposite the source for speech clarity.
• Panel/membrane absorbers: Corners and along the floor-wall junction. Low-frequency pressure peaks in corners; that is where panel absorbers earn their keep.
• Helmholtz resonators: Tuned to a specific room mode or HVAC tonal frequency, placed where the offending standing wave has its pressure maximum.

The physics behind placement is velocity vs pressure. Porous absorbers work on particle velocity, which is highest a quarter-wavelength away from a wall. Pressure-based absorbers (panels, Helmholtz) work where sound pressure peaks, which is right against a hard surface, especially in corners where two or three walls meet.

That is why bass traps in corners are not a marketing trick. Corners are pressure maxima for low-frequency room modes. A panel absorber tucked into a tri-corner attacks the bass buildup at its origin. A porous panel on the same corner gets the air-velocity treatment instead. Both work, in different ways.

For panel layout strategy on a typical wall, the where to place acoustic panels post walks through the P/A principle and first-reflection targeting.

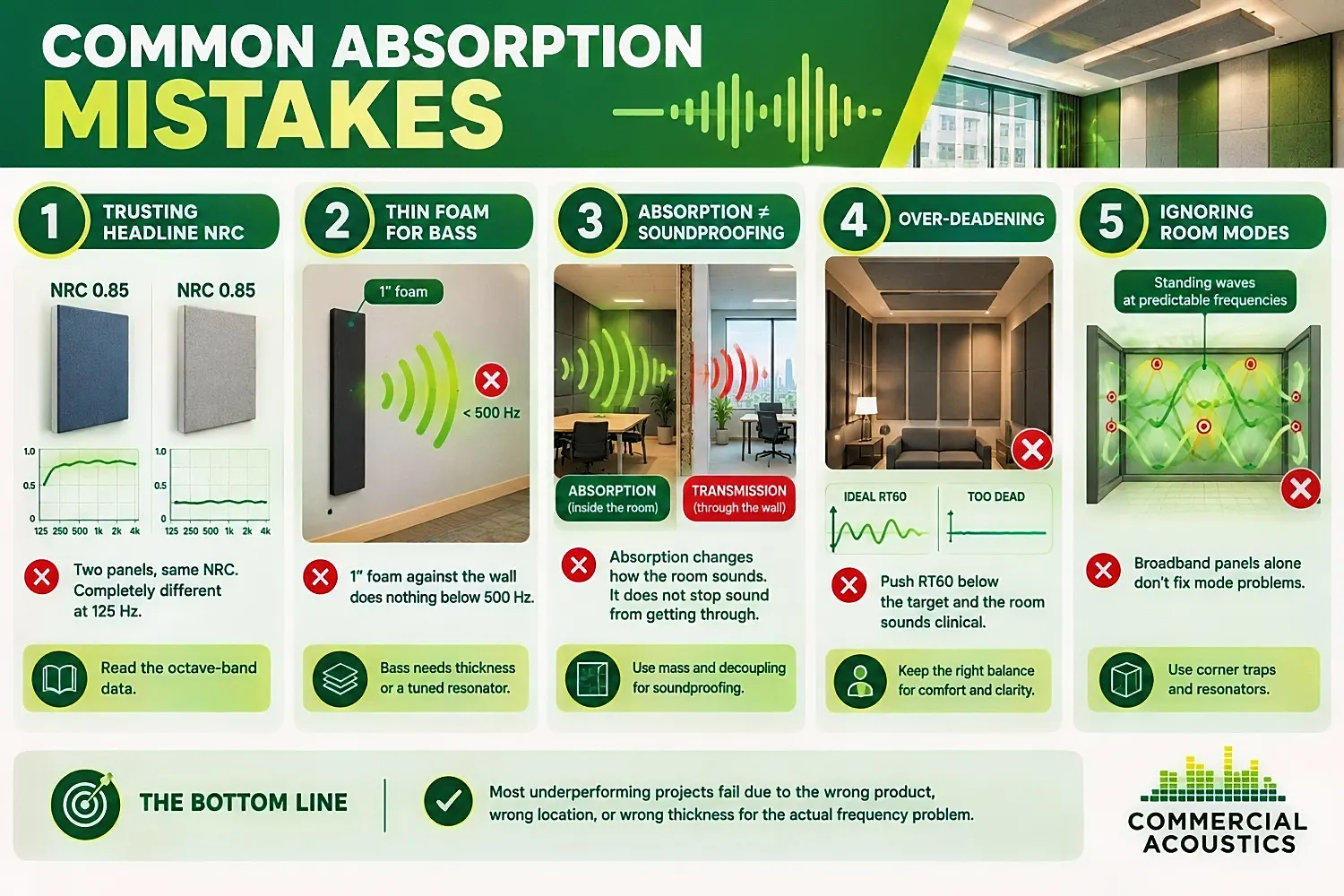

• Trusting headline NRC: Two panels at NRC 0.85 can behave completely differently at 125 Hz. Read the octave-band data.
• Thin foam for bass: 1″ foam against the wall does nothing below 500 Hz. Bass requires thickness or a tuned resonator.
• Confusing absorption with soundproofing: Absorption changes how the room sounds. It does not stop sound from getting through the wall.
• Over-deadening: Push RT60 below the program target and the room sounds clinical. People feel uncomfortable in over-treated spaces.
• Ignoring room modes: Two parallel hard walls generate standing waves at predictable frequencies. Broadband panels do not fix mode problems. Corner traps and resonators do.

Most underperforming absorption projects fail on one of these five issues. The fix is rarely more product. It is the right product in the right location at the right thickness for the actual frequency problem.

Acoustic absorption is room-acoustics engineering, not foam shopping. Pick a target RT60 for the program, identify the frequency range that needs treatment, choose the absorber type that handles that range, and place it where the physics says it earns its sabins.

Porous absorbers cover the bulk of commercial work because they are cheap, broadband, and visually flexible. Panel and membrane absorbers come in when low frequencies matter. Helmholtz resonators come in when a specific tonal problem needs to be killed. Most rooms use all three to some degree, even when the owner never sees the trap behind the architectural finish.

Send us a floor plan, ceiling height, surface finishes, and the room program. We will return a sabin-by-face workup, an RT60 target, and a product recommendation that hits spec without over-treating the room. Meet the engineers who design and supply acoustic absorption for commercial projects across the country.
