Fitness Studio Echo & Acoustic Clouds: Tai Chi Society in Dunedin, FL

• Project: Ceiling Cloud & Wall Panel Acoustic Installation
• Address: 280 Locklie St, Dunedin, FL 34698
• Facility Type: Large fitness studio for Tai Chi instruction
• Client: Taoist Tai Chi Society of the USA
• Objective: Reduce echo & improve clarity for group instruction
• Scope: Ceiling-mounted acoustic clouds & perimeter wall panels

The Taoist Tai Chi Society’s new facility in Dunedin, FL serves as a global gathering place for students and instructors practicing the internal arts. With over 20,000 square feet of open space and concrete flooring throughout, the newly built fitness studio was visually impressive—but acoustically problematic. From the very first group classes, instructors noticed a sharp fitness studio echo that interfered with peaceful practice and clear communication.

We were brought in to evaluate the space and deliver a custom acoustic solution that would control reverberation while blending seamlessly into the facility’s design aesthetic. The solution needed to preserve the calm, contemplative atmosphere of Tai Chi while ensuring instructors could be clearly understood—even with subtle movements and soft-spoken guidance.

• Organization: International nonprofit teaching Taoist Tai Chi® arts
• Design Intent: Large, open space for coordinated movement & instruction
• Client Priority: Preserve tranquility while enhancing voice clarity

The Taoist Tai Chi Society of the USA operates as a volunteer-led nonprofit focused on promoting physical, mental, and spiritual well-being through Taoist Tai Chi® practice. Their new Dunedin studio is a central hub for international workshops, classes, and instructor training.

Because the practice emphasizes softness, breath, and gentle instruction, the acoustics of the room had a significant impact on its usability. The 20-foot exposed ceilings and reflective surfaces—including polished concrete floors and gypsum walls—amplified the smallest sounds, resulting in distracting echo and poor intelligibility. For a facility designed to foster calm and clarity, this fitness studio echo stood in direct opposition to the organization’s mission.

• Ceiling Height: 20 feet with exposed metal decking
• Panel Specs: 2″ thick ceiling clouds, 4’x4′ size, NRC 1.05
• Installation: Suspended clouds + perimeter wall panels

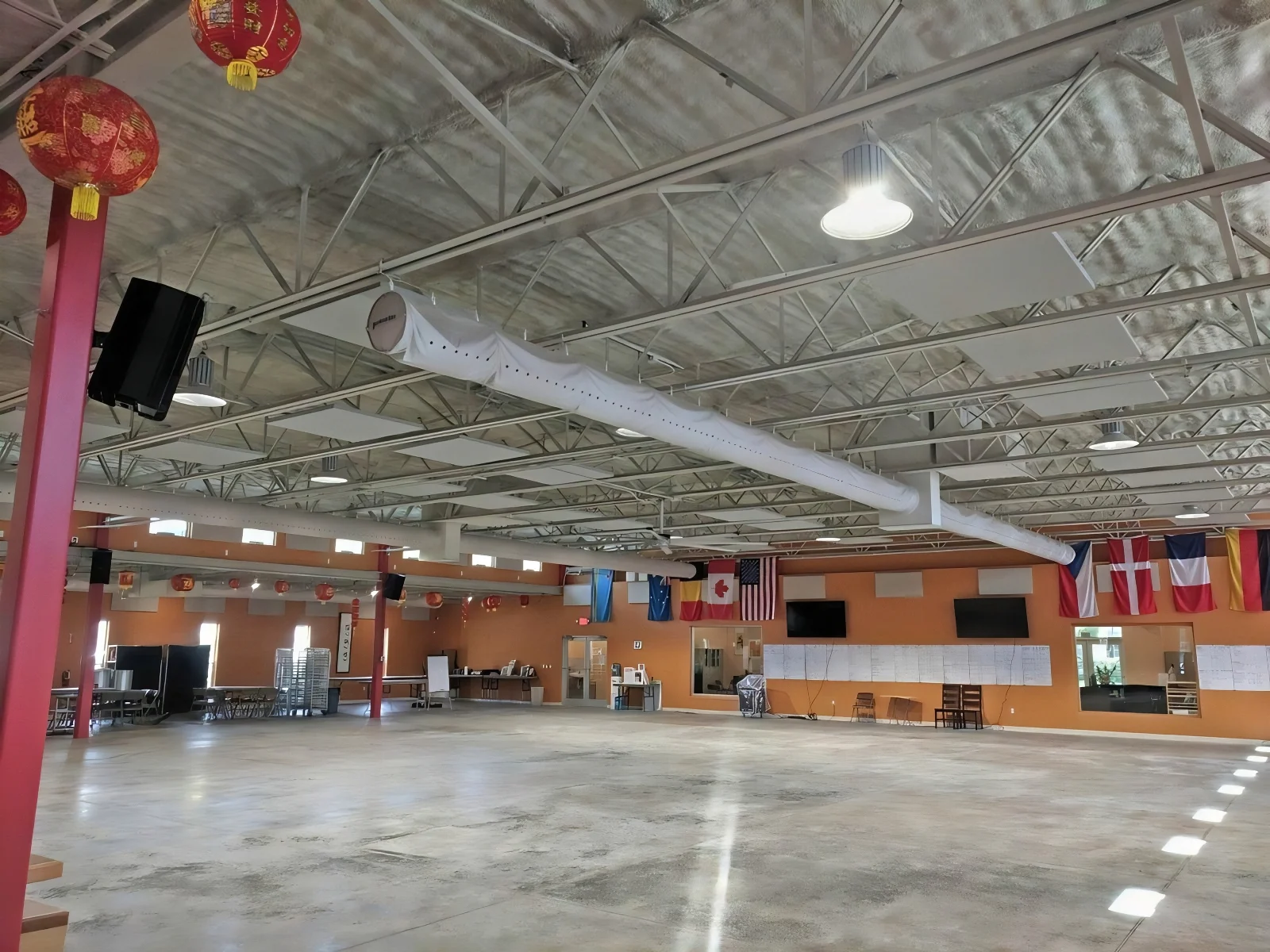

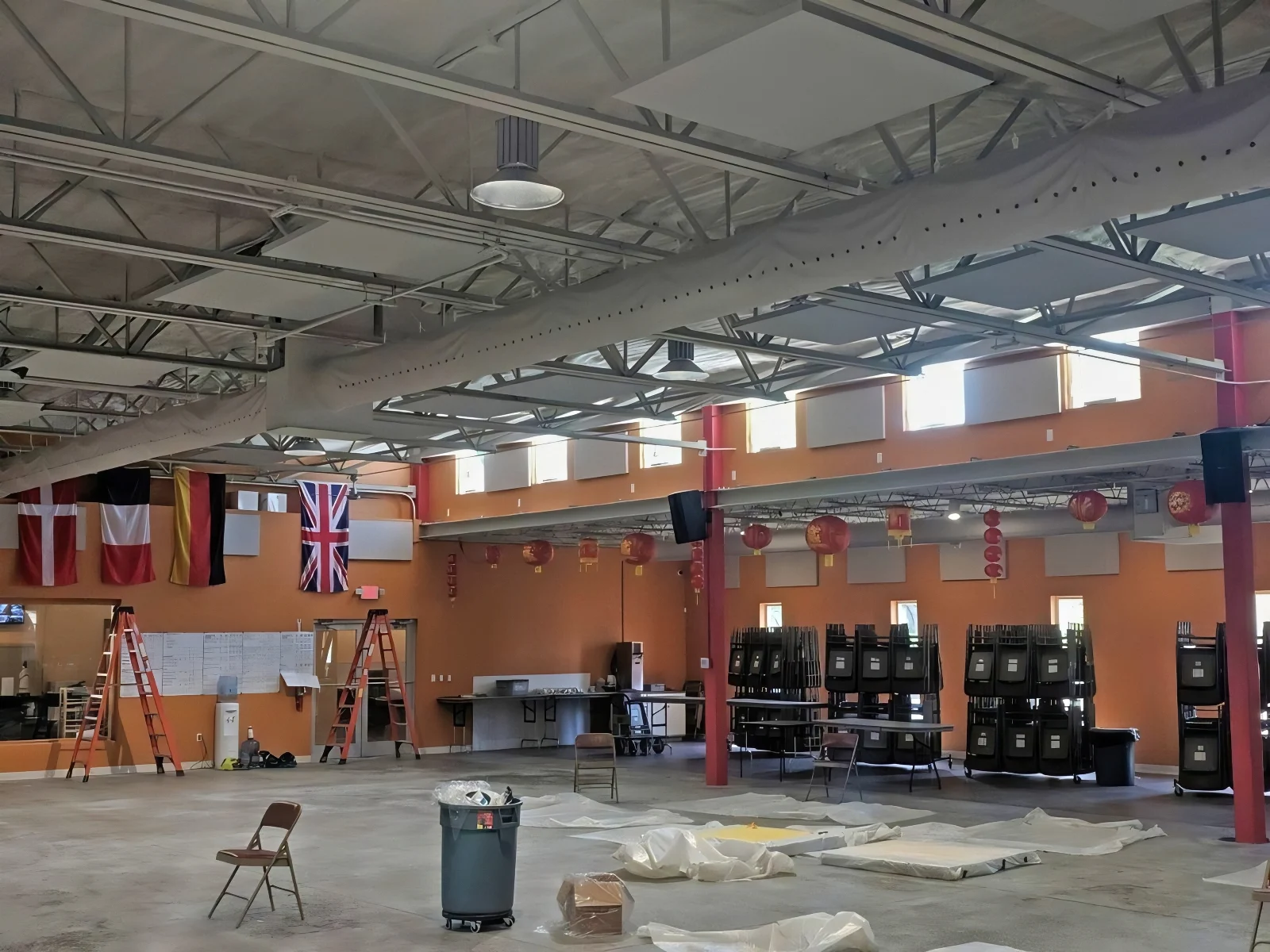

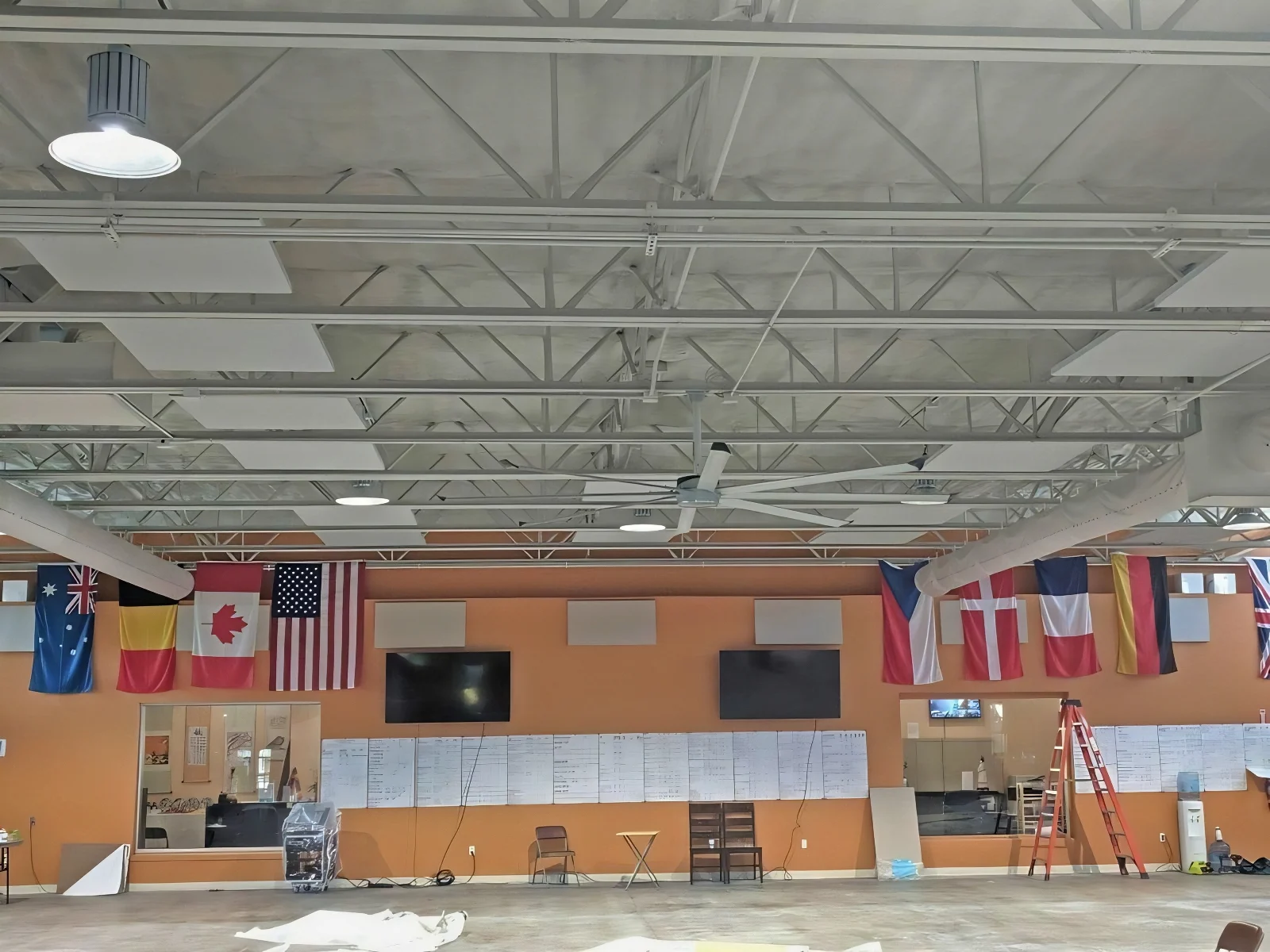

To address the room’s acoustic issues, our team fabricated and installed a series of suspended acoustic ceiling clouds between the parallel joists of the open ceiling. These 4’x4’ panels, made from high-density fiberglass and wrapped in acoustically transparent fabric, were selected for both performance and subtlety—blending with the painted ceiling and preserving the aesthetic intent of the space.

With over 960 Sabins of acoustic absorption added via the ceiling clouds alone, the overall reverberation time in the studio was cut by more than half. This was critical for maintaining instructional clarity during group sessions. In addition, we installed supplemental wall panels around the room’s perimeter to ensure even coverage and eliminate localized echo buildup in side areas where smaller team practices occur.

• Sound Challenge: High reverberation from hard, reflective surfaces
• Target RT60: Brought down below 1.5 seconds for voice clarity
• User Experience: Quieter, calmer, more intelligible environment

In many large gyms or fitness centers, a high level of reverberation—sometimes over 2.5 seconds—may go unnoticed or even be acceptable. But in group fitness environments like this Tai Chi studio, clear verbal instruction is crucial, and excessive echo can hinder both comprehension and the peaceful experience intended for participants.

Our approach combined architectural knowledge with acoustic modeling to bring the RT60 time (reverberation time) below the 1.5-second threshold recommended for spoken word clarity. By targeting both ceiling and wall reflections, we transformed the studio into a sonically balanced environment without compromising its architectural openness or visual design.

For facilities like the Taoist Tai Chi Society’s Dunedin studio, managing fitness studio echo is about more than just noise control—it’s about creating the right energy and environment for focused movement, health, and healing. Our acoustic cloud and wall panel installation delivered both measurable performance and subtle visual integration, enhancing every moment spent in the space.

If you’re designing or retrofitting a group fitness or wellness studio, acoustic treatment is an essential part of the equation. From open gyms to yoga sanctuaries and martial arts centers, our team specializes in custom solutions that support your goals. Contact us today to get started with a tailored acoustic plan for your space.
