Retail Commercial Partition Soundproofing: STC 34 to 40

• Project: Commercial Partition Soundproofing Between Retail Tenants
• Location: Bloomingdale Ave Retail Strip, Valrico, FL 33594
• Facility Type: Two Adjacent Retail Suites in a Strip Center
• Client: Automotive Parts Distributor (Tenant), Strip Center Owner
• Existing Construction: 2×4 Stud Partition with 1/2 inch Drywall, STC 34
• Objective: Reach STC 40 Without Demolition or Tenant Relocation
• Scope: OverWall Blokker Membrane Applied to One Side of Existing Partition

This was a low-disruption commercial partition retrofit, not a demolition job. The membrane went on top of the existing drywall on the parts-distributor side, lifted STC from 34 to 40, and let the tenant stay open for business through the entire install. Total acoustic work ran a single weekend.

The commercial partition in question was the demising line in a Valrico strip center. On one side, an automotive parts distributor running a quiet retail counter and small warehouse. On the other side, a karate studio teaching kids classes through the afternoon and evening. The wall between them was code-minimum 2×4 framing with half-inch drywall on each side and nothing in the cavity but R-13 batts.

Speech-band content travels through that assembly at STC 34. Kid-class shrieks at full volume travel through it like the wall is not there. The parts distributor was losing phone calls and a few customers a week to the noise bleed, and the strip-center owner was looking at a tenant renewal that depended on solving the problem without rebuilding the wall.

• Frame Mass: 2×4 studs at 16 inch OC, single coupled assembly
• Drywall Mass: 1/2 inch gypsum at ~2.5 lb per sq ft per side
• Cavity Treatment: R-13 fiberglass, adds a few STC points
• Lab vs Field: Lab STC 34, field STC often 2 to 4 points lower

Code-minimum commercial partition assemblies are sized for fire separation and basic privacy, not acoustic isolation. STC 34 is the typical lab number and the field number tends to fall further when penetrations, electrical boxes, and ceiling flanking paths are factored in. The STC calculator walks the math on any wall assembly.

The 6-point lift to STC 40 puts the wall back into the range where speech is significantly attenuated and impact-style noise from a karate class loses most of its sharp edges. Not silent, but the difference between a tenant losing customers and a tenant keeping them.

• Product: OverWall Blokker mass-loaded membrane
• Mass: 1 lb per sq ft, bonded layer over existing drywall
• Lab Performance: 6-point STC gain over the baseline 2×4 partition
• Install Surface: Bonded directly to the existing painted drywall

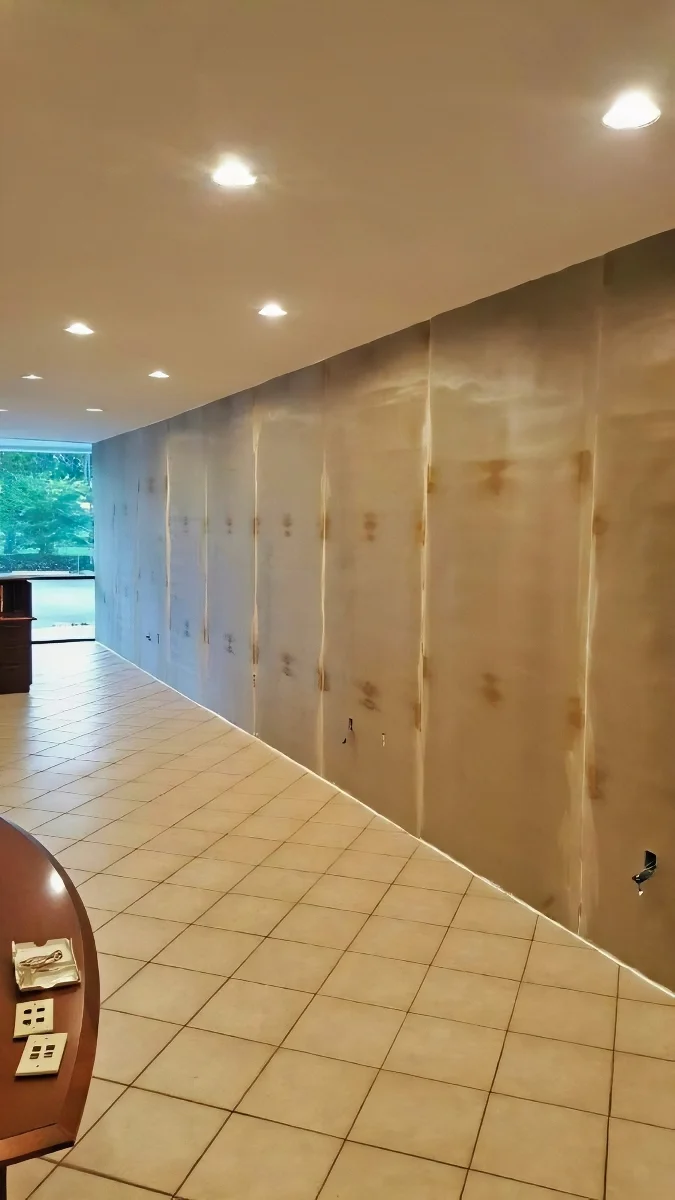

Wall Blokker membrane (the OverWall Blokker product variant) adds decoupled mass to the existing partition without touching the framing. Mass at the right position on the assembly is what blocks airborne sound, and an OverWall layer puts that mass on the front face of the existing drywall where it does the most work.

Six points of STC lift on an existing wall is the high end of what a single-product retrofit can deliver. Anything more requires either second-layer drywall over the membrane or actual demolition and a new assembly with decoupled framing.

• Existing Wall: 2×4 framing with 1/2 inch drywall, undisturbed
• Adhesive: Premium vinyl adhesive, full coverage bond
• Membrane Layer: OverWall Blokker, vertical seams sealed
• Finish: Membrane left exposed in the back-of-house parts area

The wall treatment kept the existing partition intact. No demolition, no electrical reroute, no ceiling work. The membrane bonded to the existing drywall surface with a premium vinyl adhesive and read as a single bonded layer once the seams were sealed.

The parts-distributor side was the right install face because the back-of-house parts area did not require a finished aesthetic. In a customer-facing retail space, the same membrane gets a second layer of drywall over the top for paint and finish. The STC rating chart shows what each assembly level blocks.

• Crew: Two installers, single weekend
• Disruption: No karate-side access required, tenant kept teaching
• Downtime: Parts distributor closed Saturday morning only
• Cost: Materials plus two-day labor, no GC overhead

One-side install is the move that made this project viable. Treating both sides of a demising partition doubles the cost and requires coordination with the noise-source tenant, which usually fails on the schedule. The OverWall approach put the entire acoustic gain on the parts-distributor side and never asked the karate studio to lose a class.

A parallel approach uses curtains instead of bonded membrane when the wall surface cannot be modified. The Wright’s Gourmet curtain partition project shows that variant in a restaurant context where the partition was movable and the install had to leave no marks on the wall.

• Conversational Speech: Faintly audible, not intelligible
• Phone Conversations: Clear on the parts-distributor side again
• Kid-Class Shrieks: Reduced to background noise, not foreground
• Customer Perception: Karate noise no longer the dominant retail impression

STC 40 is the right target for a commercial demising partition between low-conflict tenants. It is not the right target for a recording studio, a courtroom, or a multi-family unit. It is the budget-conscious commercial number that keeps a retail tenant operational against a moderately noisy neighbor without rebuilding the wall.

For deeper isolation between commercial tenants, the path moves through double drywall over the membrane, then through decoupled framing, then through floating floor work. Our office soundproofing solutions page maps the levels of intervention against the budget that supports each one.

The Valrico retrofit is the case for treating a commercial partition without demolishing it. Six points of STC lift on the existing wall, one side only, single weekend of work, and the tenant kept the door open through the entire install. Our other acoustic projects walk the same approach across retail, office, and industrial settings.
