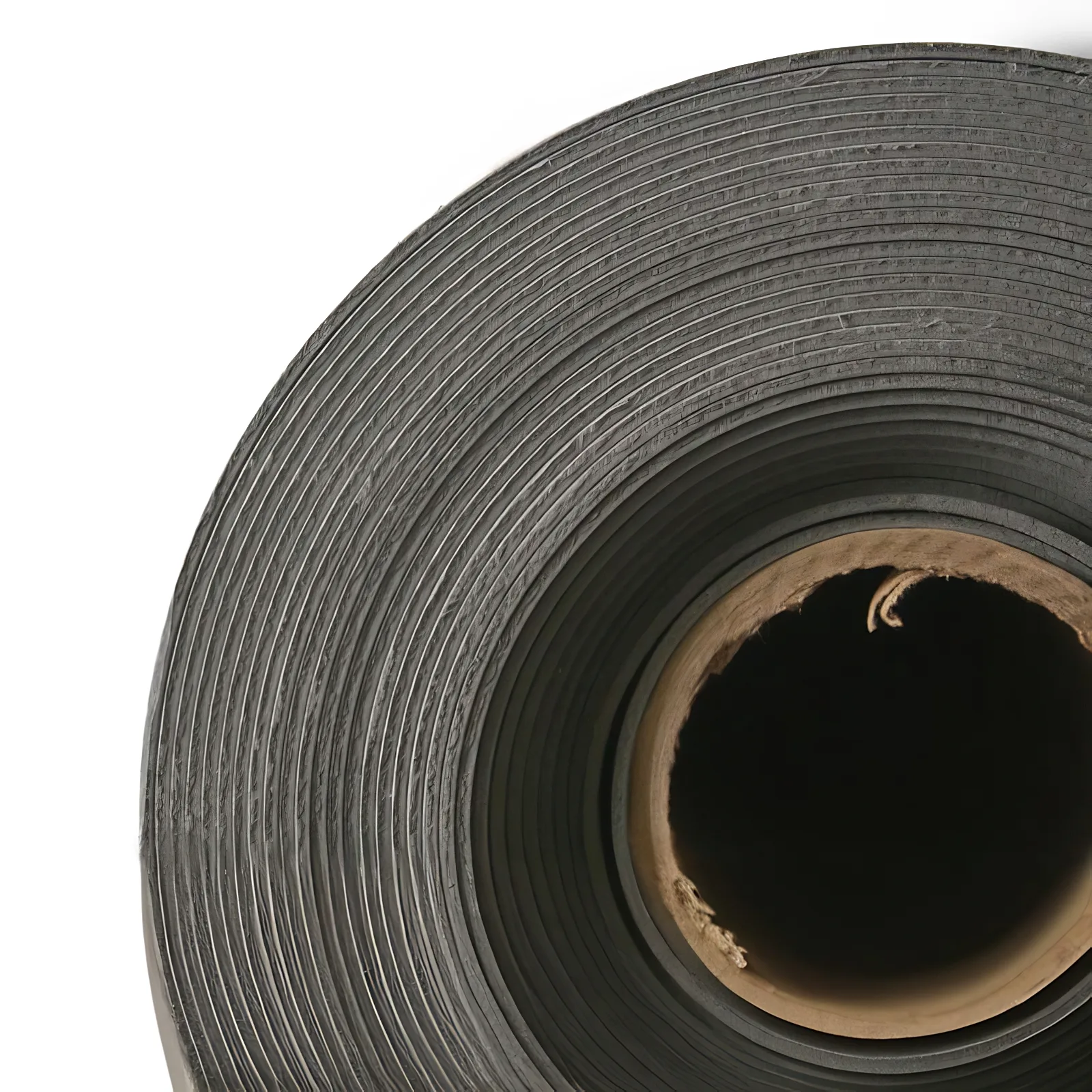

Close-up of Wall Blokker Lite Acoustic Roll showing Lightweight 0.6 lb/sf Mass Loaded Vinyl Membrane | Produced By: Commercial Acoustics

Multiple Rolls of Wall Blokker Lite Lightweight Mass Loaded Vinyl Soundproofing Membrane | Produced By: Commercial Acoustics

Wall Blokker Lite

Wall Blokker Lite

Wall Blokker Lite

Wall Blokker Lite

Wall Blokker Lite Data Sheet Wall Blokker Lite Specs

Commercial Acoustics Wall Blokker Lite is a lightweight, 0.6 lb/sf, 1/16″ thick EVA-based soundproofing membrane engineered to block airborne noise and dampen structure-borne vibration. With a stand-alone STC rating of 21, it can raise partition ratings into the STC 50–70+ range, making it an ideal solution for metal-stud wall assemblies.

Durable yet flexible, Wall Blokker Lite installs quickly by stapling or nailing directly to studs before drywall. Designed as an affordable alternative to heavier sound membranes, it has been tested in the most common assemblies across the hospitality and multi-family industries.

Request a Quote Wall Blokker Lite Case Studies

SKU: WB-LITE-0.6LB-MLV Categories: Sound Blocking, Soundproofing Membranes

Description
Specification

Wall Blokker Lite Product Description

Commercial Acoustics Wall Blokker Lite is a lightweight, EVA-based soundproofing membrane designed for effective noise reduction in hospitality, multi-family, and residential projects. At just 1/16″ thick and weighing 0.6 lb/sf, Wall Blokker Lite installs easily on metal or wood studs to reduce sound transfer while keeping material weight and cost low. With a stand-alone STC rating of 21, it can raise partition ratings into the STC 50–55+ range when integrated into common metal-stud walls.

Developed as a cost-effective alternative to traditional PVC-based MLV, Wall Blokker Lite maintains durability without off-gassing or material breakdown. Its balance of mass and flexibility provides both airborne noise blocking and structure-borne vibration control, making it a practical solution for projects that need dependable soundproofing performance at a lower weight.

Wall Blokker Lite Product Specifications

Approved for all UL U300, U400, & V400 Series assemblies (1 & 2 hour rated)
1/16″ thick, 0.6 lb/sf acoustical-grade polymer
Class A fire rating per ASTM E84; 1-hour fire resistance per ASTM E119
Non-PVC, EVA-based membrane (no off-gassing, won’t degrade over time)
Mold & mildew resistant per ASTM D3273
Cost-effective alternative to resilient channel, SoundBreak, or doubling drywall layers

Wall Blokker Lite Features & Benefits

STC improvement of 6–11 points on 20-ga & 25-ga metal studs
STC 55+ on single metal-stud walls; STC 60+ on double studs
Significant low-frequency enhancement below 500 Hz
Quieter structures with less material & labor
Entry-level, budget-friendly option for commercial noise reduction

Installation Overview

~1,000 square feet/man day
Installs on metal or wood studs under drywall (staples or screws)
Rolled goods cut easily with a utility knife
Detailed installation instructions available here: Installing Wall Blokker Lite

Product Dimensions

Stocked in 4′ × 25′ rolls
Custom lengths available for truckload quantities
Standard tolerances:
- Width: +/- ½″
- Length: +/- 1%
- Nominal thickness: +/- 2%

Ideal Soundproofing Applications

Hospitality & multi-family projects requiring STC 50–55+
Metal-stud wall assemblies where low weight is preferred
Cost-sensitive builds needing effective sound control

Commercial Acoustics Wall Blokker Lite Specification
Division 09 – Finishes
Section 098400 – Acoustical Room Components

PART 1 – GENERAL
1.1 SUMMARY
A. Section includes:

Wall Blokker Lite by Commercial Acoustics soundproofing membrane.
1.2 RELATED DOCUMENTS
A. Drawings and general provisions of the Contract including supplements and addendums.
B. Applicable Specification Sections: Division 01 – General and Division 09 – Finishes.
1.3 REFERENCES
A. International Building Code (IBC) 2012:
Section 1207 – Sound Transmission
B. ASTM Tests:
E90 – Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements.
E413 – Classification for Rating Sound Insulation.
C. ASTM Specifications:
C840 – Standard Specification for Application and Finishing of Gypsum Board.

1.4 SUBMITTALS
A. For each product indicated:

Product Data Sheet: manufacturer’s specifications including laboratory test summary.
Installation Instructions: manufacturer’s detailed installation procedure including jobsite condition requirements, surface preparation requirements, and approved products.

1.5 DELIVERY, STORAGE, AND HANDLING
A. All materials shall be delivered in original unopened packaging.
B. Wall Blokker may be stored in a wet or dry environment and may be stored outdoors for up to three months on construction sites without special tarps or covering.

If stored below freezing temperatures, material may require up to 48 hours of acclimation to regain pliability.
Acclimate Wall Blokker Lite for a minimum of 24 hours at temperatures 60 degrees (F) or greater to reduce material stiffness when handling.
If material stiffens, it may be softened more rapidly using a heat gun.

1.6 PROJECT CONDITIONS
A. Wall Blokker Lite is typically installed after framing, insulation, and electrical are complete. Insulation should be installed in the wall cavity in addition for optimal performance.
B. Ensure that all applicable inspections are completed prior to installation of Wall Blokker Lite.
C. Wall Blokker Lite may be installed prior to “drying in” the building (prior to installation of windows and doors).

Drywall should be installed within 2-4 weeks afterwards to prevent excessive wear.
a. For longer delays, washers should be installed for securely fasten the material.
Drywall installation permanently attaches Wall Blokker Lite to the stud.

PART 2 – PRODUCTS

2.1 WALL BLOKKER LITE BY COMMERCIAL ACOUSTICS
A. Materials:

Engineered sound reduction membrane.
Flexible Ethylene Vinyl Acetate (EVA) product made from post-industrial recycled material.
B. Dimensions:
Thickness: nom. 0.063”- 0.075”
Weight: 0.5-0.6 lb/sq.ft.
Standard Sizes: 4’x25’ rolls; 4’x8’ sheets; custom length rolls available.
Tolerances:
a. Width: +/- 0.5”; Length: +/- 1%
b. Nominal Thickness: +/- 0.05”
C. Performance:
RAL Lab Test Data:
a. 25ga Studs, 24”o.c. 0.5psf: STC = 52 RAL-TL18-391
b. 25ga Studs, 24”o.c. 0.6psf: STC = 55 RAL-TL18-392
UL Classified Assemblies:
a. 300, 400, 500 Series
Flammability Rating:
a. Class 1 (ASTM E84 Rev. A)
b. 1-Hour fire resistance wall rating (ASTM E119)
c. 0.3 Thermal Resistance coefficient (ASTM C518)
d. SE “O” in/min.
Strength:
a. Tensile Strength: 400 psi
b. Tear Strength: 70 lbs./in.
c. Ultimate Elongation: 200%
Environmental:
a. Mold/Mildew resistant. No fungal/algae growth and no visible disfigurement (ASTM D3273 & ASTM G21).
b. Impermeable air and moisture barrier.
c. Non-PVC: no off-gassing.
d. HIPPA Compliant.
e. 100% recyclable at end of life.

PART 3 – EXECUTION

3.1 PREPARATION
A. Wall and/or stud assembly to receive Wall Blokker must be structurally sound prior to installation.
B. Wall must be clean and free of debris.

Protrusions greater than 1/16” shall be scraped from the surface to avoid puncturing.
C. See Section 1.6 for additional project condition requirements.

3.2 INSTALLATION
A. Starting in one corner of the room, install Wall Blokker Lite flush with the top of the top plate, and hang it vertically.
B. Wood Studs:

Attach Wall Blokker Lite to the top of the wood top plate using wide-crown ½” staples or pan head screws.
Fasten every 12” horizontally along the top plate.
Straighten Wall Blokker Lite from the top down so that it is flush against the studs.
Attach Wall Blokker Lite to the center of each vertical wood stud using ½” staples or pan head screws.
Fasten every 36” vertically along the center of each stud using an exterior fastener pattern, only fastening to the stud where the seam falls.
C. Metal Studs:
Attach Wall Blokker Lite directly to the light gauge metal studs using drywall screws.
Fasten every 12” horizontally along the top.
a. Wall Blokker Lite installed on walls greater than 15’ in height shall be secured with
washers along the top to prevent the fasteners from tearing the material.
b. Fasteners shall be used on intermediate studs (in addition to exterior studs) every 12’ vertically.
Straighten Wall Blokker Lite from the top down so that it is flush against the studs.
Attach Wall Blokker Lite to the center of each vertical stud using drywall screws.
Fasten every 36” vertically along the center of each stud.

3.3 PROCEDURE
A. Install Wall Blokker Lite as required on all walls.
B. Keep fasteners as flush as possible to prevent protrusion into the finished wallboard.

Fasteners shall not protrude more than 1/16” from Wall Blokker Lite surface.
C. Do NOT overlap the seams of separate sheets.
Tightly butt the side of the next sheet of Wall Blokker Lite to the edge of the existing attached sheet.
D. For seams that do not fall on a stud, tape with “Seam-Seal” or equivalent.
If seams fall on the stud with gaps greater than 1/8”, then taping is also required.
Ensure that there are no bubbles or wrinkles in the tape. Commercial tape alternatives include commercial duct tape.
The tape is semi-permanent and will be permanently sealed in position when drywall is installed. Drywall installation will seal Wall Blokker against the existing studs.
E. Cut Wall Blokker Lite to fit around irregular objects and penetrations including outlets, switches, and junction boxes.
Gaps shall be less than 1/8”.
Gaps greater than 1/8” shall be sealed with acoustical or non-hardening caulk.
Gaps greater than 1/4” may be filled with backer rod or fiber batting.
Putty pads should be installed on the back of all electrical boxes.
F. Caulk the bottom of the floor plate at the floor line with acoustical sealant.
G. Install drywall per normal technique (ASTM C840).
Wall Blokker Lite will be fastened permanently when the gypsum board is installed.

END OF SECTION
